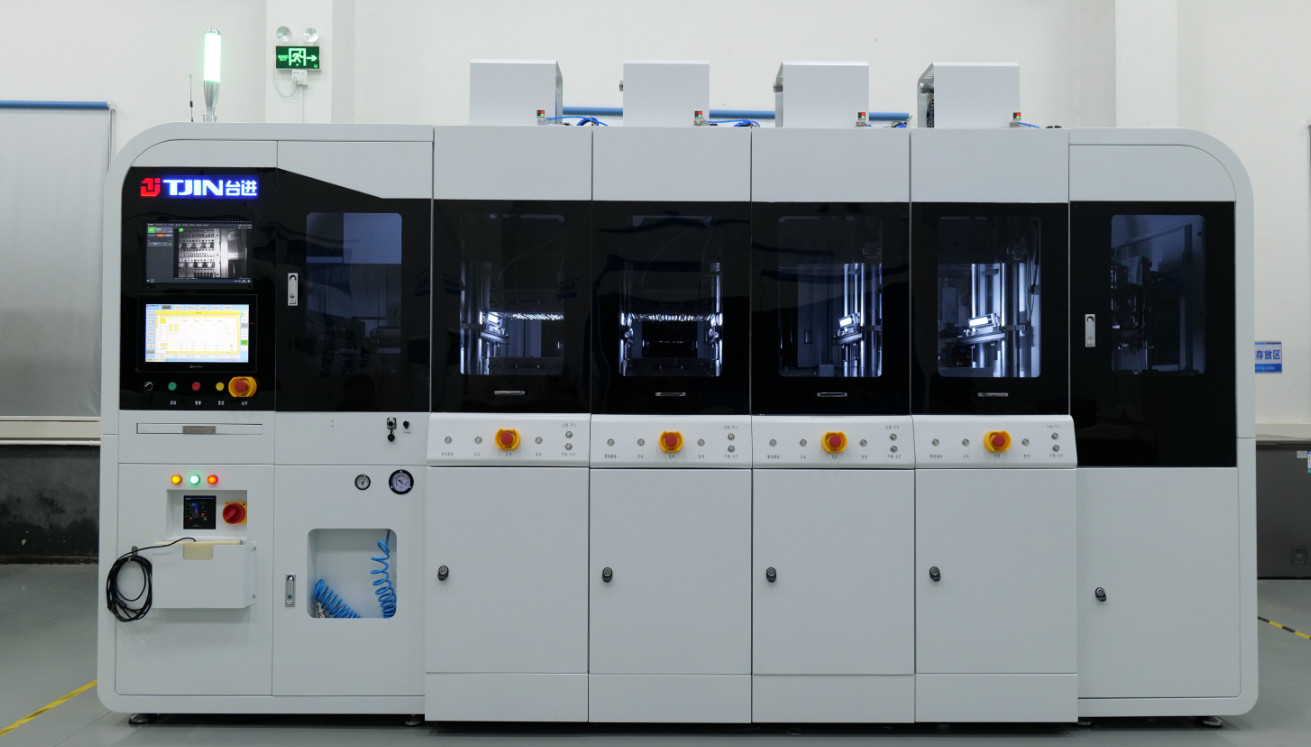

120 Tons Auto Molding System With 12KW Heating Power

Clamping pressure: 98-1764kN

Injection pressure: 4.9-29.4kN

Applicable lead frame/substrate size: width 20-90mm, length 124-300mm, thickness 0.15-1.2mm

Applicable EMC specifications: Diameter: Ф 11-Ф20mm (±0.2mm), length/diameter=1.2-2.0(Max 35mm)

Control system: PLC (Omron)+ host computer

Operating system: WIN10+15-inch touch screen + touch keyboard

Detection system: CCD image detection, feed anti-reverse detection

Loader: aluminum magazine

Unloader: auto stack load to box receiving

Optional: mold vacuum system, separator film system

environmental parameter requirements:

1. Temperature range: 22-28 degrees Celsius;

2. Humidity range: 50%-75%;

3. Cleanliness level of the workshop: 100,000 grade;

Equipment volume and load characteristics:

1. Equipment dimensions and weight:
