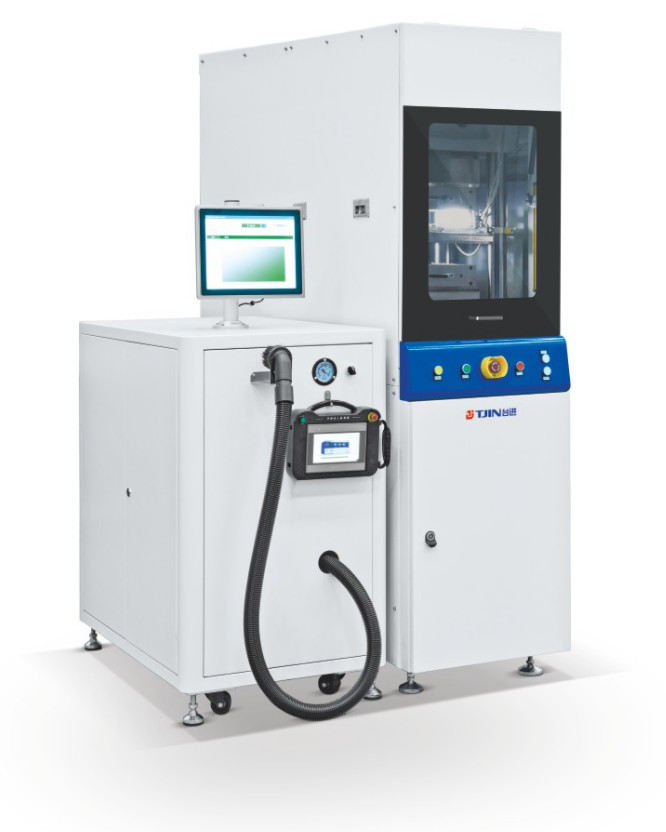

Semi-auto molding machine

Application range:

Small batch production, mold testing, laboratory, teaching instruments

Main parameters:

Mold clamping pressure: 98-1176kN

Injection pressure: 1-29.4kN, 8-stage injection speed adjustable

Applicable lead frame/substrate size: width 20-90mm, length 124-

300mm, thickness 0.15-1.2mm

Applicable plastic sealing material specifications: Diameter: Φ11-Φ20mm(±0.2mm), length < 35mm

Control system: PLC (Omron); pressure curve output and storage

Acquisition system: pressure curve output and storage

Loading and unloading method: manual loading and unloading

Safety protection system: safety grating, leakage protection device, two-hand button device, safety protection door

Available options:

Mold vacuum system and isolation film system; dual presses can be connected in parallel to install different molds and test molds at the same time
