Auto Trim and Form Equipment
Main features
Equipment Function: Cutting and bending molding separation of products after plastic sealing;
Applicable packages: SOT/SOD/TSOT/SOP/TO252/TO263/SMD and other series;
Punching power: servo motor on the power-3~5T;
Tendon cutting speed: 70-100 punches/minute (SPM: 70-100)
Control system: PLC (Omron)
Operating system: touch screen + buttons, display UPH/SPM punching and cutting count;
Feeding structure: rotary double magazines feeding;
Receiving structure: cartridge receiving (bulk)
Safety protection system: the equipment has a leakage protection device, emergency stop button device and all the main protective doors are equipped with SENSOR protection device;
Option 1: CCD visual inspection device;
Option 2: MES system networking function;
Full-automatic cam synchronized high-speed cutting, forming and separating system (SMP: 70-90) comprises: straightening, rotating mechanism, mounting base, cutting assembly and bending foot assembly, each of the above mentioned cutting assembly and bending foot assembly is set with a product support point underneath the base. The above mentioned bending foot assembly comprises: a fixed immovable press set in one of the above mentioned positioning fixtures, a drive member set in the above mentioned mounting base and driven to adjust the fixed immovable press, and a drive member set in the above mentioned positioning fixture. The foot bend assembly consists of: a stationary press on the above positioning fixture, a drive unit that is fixed to the above mount and drives the stationary press to adjust, a foot bend press that is fixed to the above stationary press, and a foot bend drive that drives the foot bend press to adjust, where a concave groove is set on the above positioning fixture in the area that matches the foot of the product, and this groove and the above foot bend press are used to bend the product's foot in accordance with the sheet metal bending process. This product has a rotating mechanism whereby the bar cutting assembly and the foot bending assembly are set up in the same machine, so that the bar cutting and foot bending can be performed in turn and continuously, thus improving the productivity of the product, and at the same time, the structure of the product is simple, and the operation is easy and convenient, thus facilitating the completion of the process.

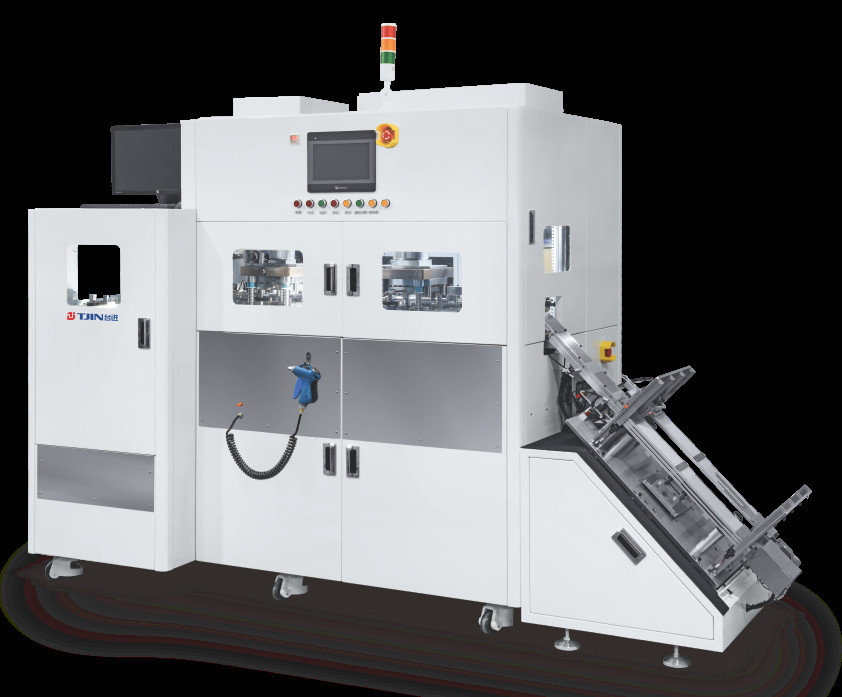

The Trim And Form Machine, also known as TFM-1100, is an innovative and versatile product designed to meet the needs of various industries. With its advanced technology and user-friendly interface, this machine is capable of performing a wide range of tasks, making it an essential tool for any production line.
The TFM-1100 offers two operation modes - manual and automatic. In manual mode, the operator has full control over the machine, allowing for customized trimming and forming of products. In automatic mode, the machine operates independently, reducing human error and increasing efficiency.
The TFM-1100 has a compact design with dimensions of approximately 1,200mm X 1,200mm X 1,500mm. This makes it suitable for small production spaces and allows for easy transportation.
The machine operates with a standard air pressure of 0.5MPa, providing enough power to perform precise and efficient trimming and forming tasks.
The TFM-1100 is the latest model of the Trim And Form Machine series. It has been upgraded with new features and improved technology to provide a more efficient and versatile experience.
The machine operates on a standard AC 220V power supply with a frequency of 50/60Hz. This makes it suitable for use in various countries and ensures a stable and reliable power source.
The TFM-1100 is equipped with an automatic punching and forming system that allows for quick and accurate shaping of products. This feature eliminates the need for manual trimming and forming, saving time and labor costs.
The TFM-1100 also comes with an auto frame loader, which automatically loads frames onto the machine for trimming and forming. This feature increases efficiency and reduces the risk of damage to products during loading.
In addition to trimming and forming, the TFM-1100 also has the capability of cutting and molding tendons. This feature is especially useful in industries that require precise cutting and shaping of tendons for their products.
The TFM-1100 is designed with high precision in mind. It is equipped with advanced sensors and controls that ensure accurate trimming and forming of products, reducing waste and increasing efficiency.
The TFM-1100 is a highly efficient machine that can process a large number of products in a short amount of time. This makes it an ideal choice for high-volume production lines.
The TFM-1100 is designed to be user-friendly, with a simple interface and easy-to-use controls. This allows operators of all skill levels to operate the machine with ease and reduces the need for extensive training.
The TFM-1100 is a versatile machine that can handle a variety of materials and product shapes. This makes it suitable for use in various industries, such as electronics, automotive, and medical.
The compact design of the TFM-1100 not only makes it suitable for small production spaces but also allows for easy integration into existing production lines. This can help optimize the use of space and increase overall efficiency.
The TFM-1100 is built to last with high-quality materials and components. Its sturdy construction ensures long-term durability, reducing maintenance costs and downtime.
The TFM-1100 is a cost-effective solution for trimming and forming needs. Its efficient operation and versatile capabilities can help reduce labor costs and increase productivity, ultimately leading to higher profits.
Product Name | Trim And Form Machine |
---|---|
Model | Auto Trim & Form System |
Application | Semiconductor Cutting and Molding Machine |
Trimming Size | Max. 110mm X 110mm |
Forming Size | Max. 110mm X 110mm |
Dimensions | Approx. 1,200mm X 1,200mm X 1,500mm |
Trimming Speed | Approx. 0.5 Seconds Per Piece |
Power Supply | AC 220V, 50/60Hz |
Air Pressure | 0.5MPa |
Air Consumption | Approx. 100L/min |
Power Consumption | Approx. 1.5kW |
Weight | Approx. 500kg |
Safety Features | Emergency Stop Button, Safety Light Curtain |
Additional Features | Auto Frame Loader |
Brand Name | TJIN |
---|---|
Model Number | 003 |
Place of Origin | China |
Forming Size | Max. 110mm X 110mm |
Trimming Size | Max. 110mm X 110mm |
Control System | PLC Control System |
Weight | Approx. 500kg |
Dimensions | Approx. 1,200mm X 1,200mm X 1,500mm |
The TJIN 003 Trim And Form Machine is a state-of-the-art semiconductor cutting and molding machine that has been specifically designed for the needs of the modern electronics industry. With its advanced technology and precision engineering, this machine offers unparalleled performance and reliability, making it the perfect choice for any semiconductor trim and form application.
The machine is equipped with an auto frame loader, which allows for easy loading and unloading of semiconductor components, making the process faster and more efficient. This feature also reduces the risk of damage to the components during the loading and unloading process, ensuring a higher yield rate and minimizing production costs.
The TJIN 003 is designed to handle a variety of semiconductor sizes, with a maximum forming and trimming size of 110mm X 110mm. This makes it a versatile machine that can handle a wide range of semiconductor components, making it the go-to choice for any trim and form application.
One of the key features of the TJIN 003 is its PLC control system, which offers precise and accurate control over the machine's operations. This ensures consistent and high-quality output, reducing the risk of errors and ensuring a smooth production process. The control system is user-friendly and can be easily programmed to meet the specific needs of each application.
The machine is made in China, ensuring high-quality manufacturing and adherence to international standards. It is compact and lightweight, with a weight of approximately 500kg, making it easy to transport and install in any production facility. Its dimensions of approximately 1,200mm X 1,200mm X 1,500mm also make it a space-saving solution, allowing for efficient use of floor space.
Overall, the TJIN 003 Trim And Form Machine is the perfect solution for any semiconductor trim and form application. Its advanced features, precision engineering, and user-friendly design make it the top choice for electronics manufacturers looking to increase productivity and reduce production costs. With its reliable performance and high-quality output, this machine is an essential tool for any modern production line.
Brand Name: TJIN
Model Number: 003
Place of Origin: China
Operation Mode: Manual/Auto
Trimming Speed: Approx. 0.5 Seconds Per Piece
Air Consumption: Approx. 100L/min
Forming Speed: Approx. 0.8 Seconds Per Piece
Weight: Approx. 500kg
Introducing TJIN's customized services for our innovative Trim And Form Machine. Designed and manufactured in China, this Auto Trim & Form System is the perfect solution for your semiconductor cutting and molding needs.
Our Tendon cutting and molding machine offers a manual and automatic operation mode, providing flexibility and ease of use for your production process. With a trimming speed of approximately 0.5 seconds per piece and a forming speed of approximately 0.8 seconds per piece, our machine guarantees efficiency and precision in every trim and form.
With an air consumption of approximately 100L/min, our machine is environmentally friendly and cost-effective. Weighing in at approximately 500kg, our Trim And Form Machine is compact and easy to install in any production line.
Choose TJIN for all your Trim And Form Machine needs and experience our top-notch customized services. Trust us to deliver the best quality, speed, and efficiency for your semiconductor cutting and molding process.
