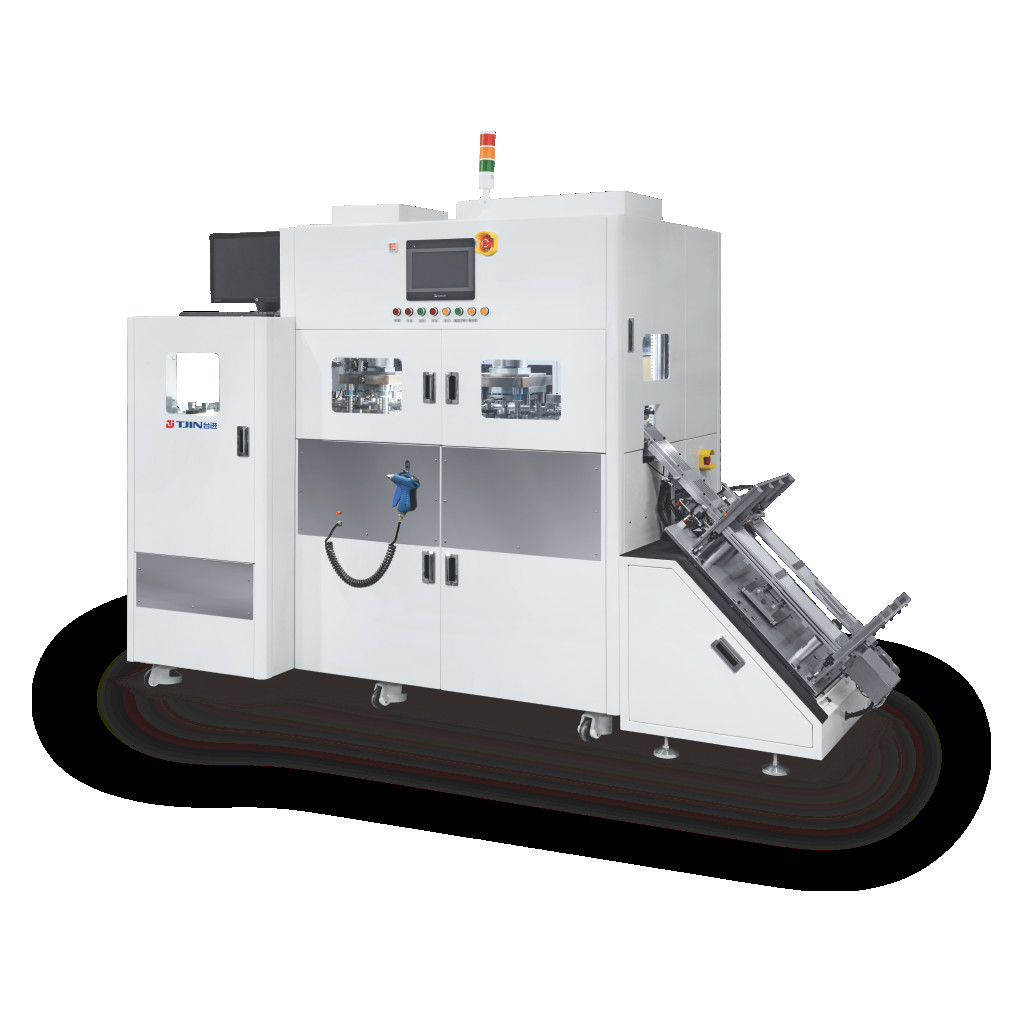

Auto Plastic Cutting and Molding Machine
Main Feature
Equipment function: After plastic sealing, the product is cut and bended separately;
Powding speed: 50 ~ 100 punch/minute (SPM: 50 ~ 100)

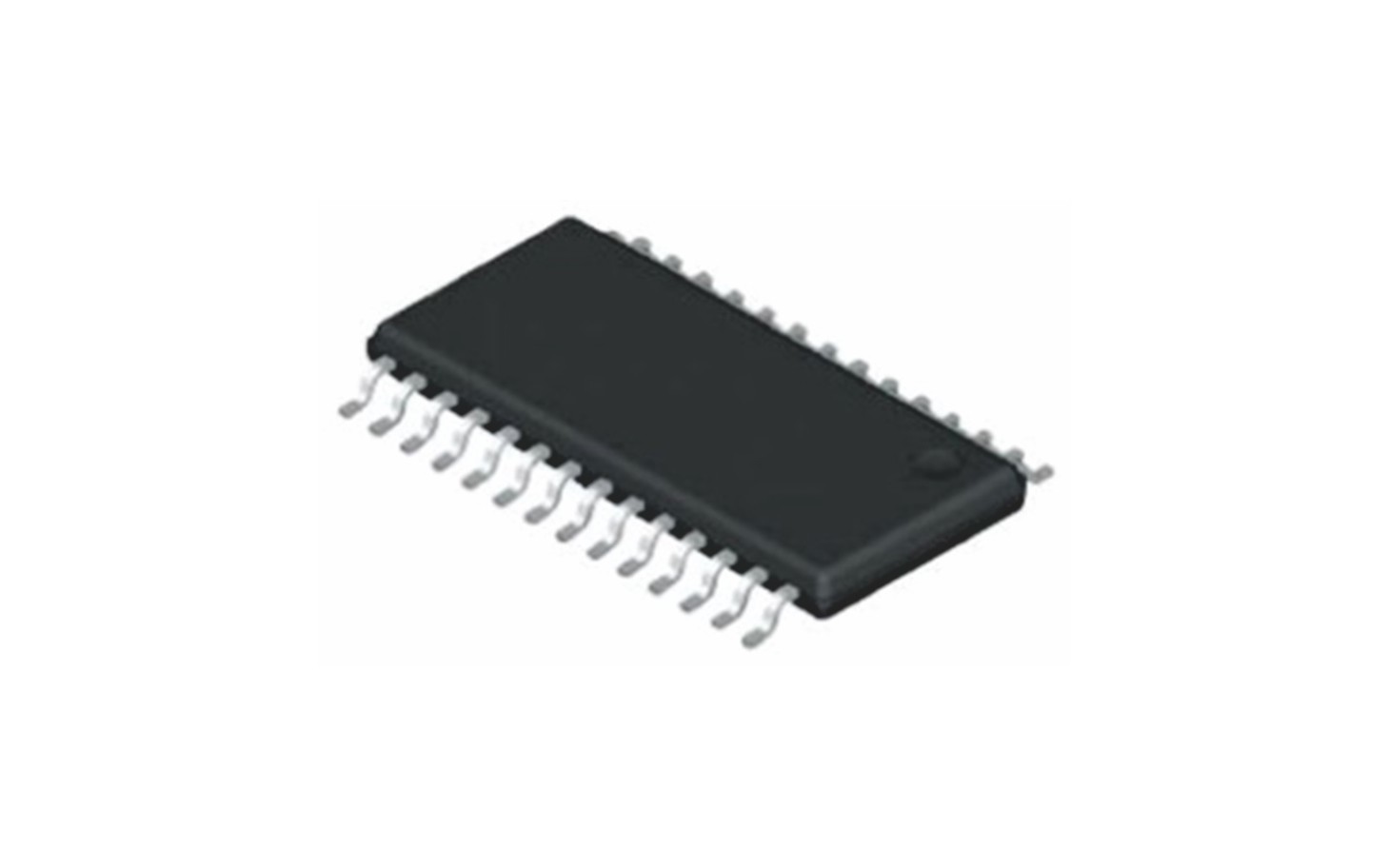

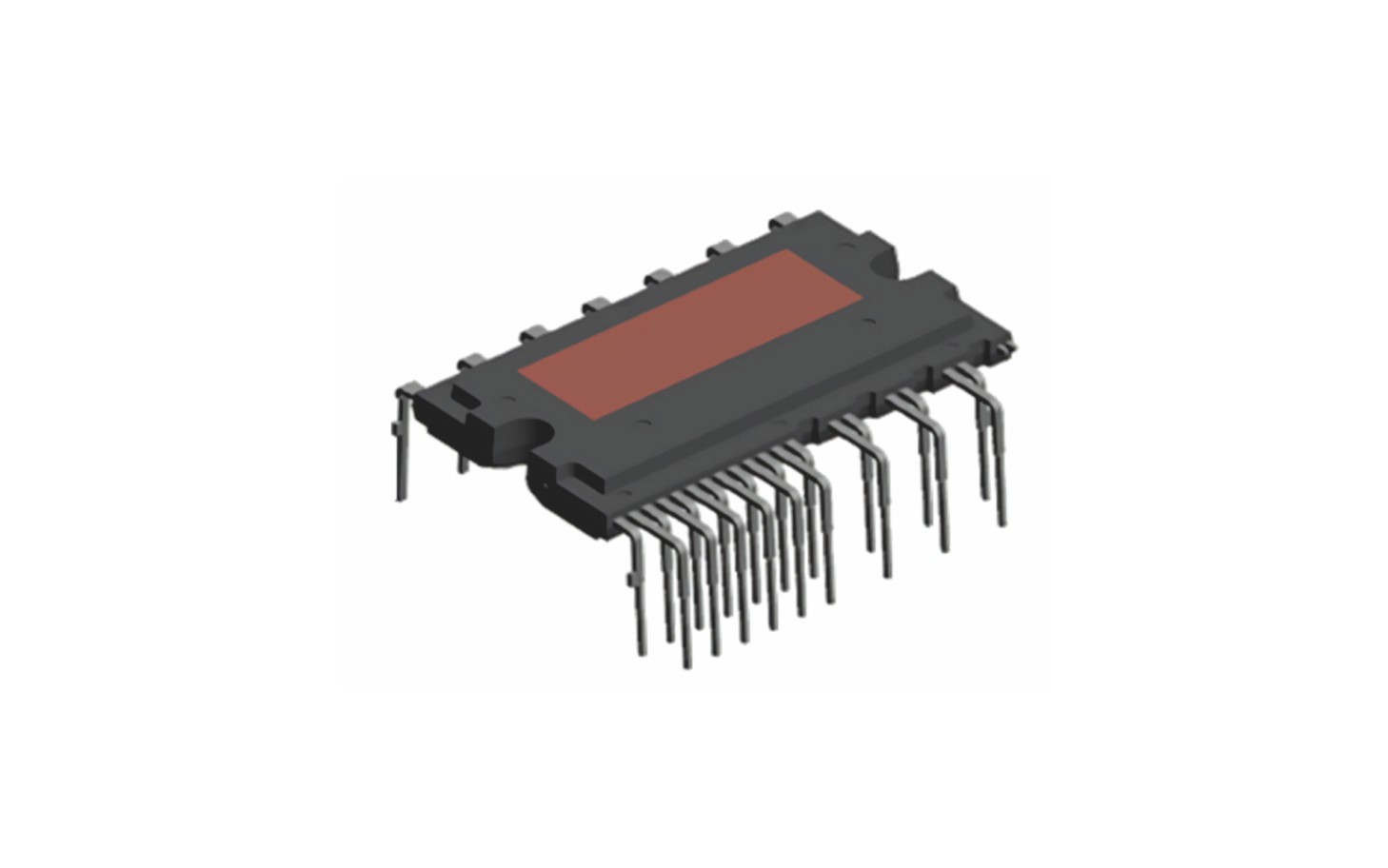

Applicable package: SOP/SSOP/TSSOP/MSOP/TSOP/To/DIP and other ICs, chips, semiconductor devices;
Punching power: servo motor-3 ~ 5T;
Control system: PLC (Omron)
Operating system: touch screen+operating button, display the UPH/SPM punching number counting function
Detection system: feeding and material -out dual -mirror CCD image detection
Materials: Rotating double magazine feed
Feeding agency: automatic conversion of layers of tube discs (tube installation)
Safety protection system: The device is equipped with a leakage protection device, an emergency stop button device, and all the main door protection installations with a Sensor protection device. After the door protection is opened, the system should respond to protect personal safety.
Optional 1: CCD visual detection device;
Optional 2: MES system networking function;
| Semiconductor Tendon Cutting Machine | Trim and Form System |
|---|---|
| Model | TFM-1100 |
| Weight | Approx. 500kg |
| Trimming Size | Max. 110mm X 110mm |
| Dimensions | Approx. 1,200mm X 1,200mm X 1,500mm |
| Air Consumption | Approx. 100L/min |
| Forming Size | Max. 110mm X 110mm |
| Control System | PLC Control System |
| Air Pressure | 0.5MPa |
| Safety Features | Emergency Stop Button, Safety Light Curtain |
| Forming Speed | Approx. 0.8 Seconds Per Piece |
Brand Name: TJIN
Model Number: 003
Place of Origin: China
Power Consumption: Approx. 1.5kW
Safety Features: Emergency Stop Button, Safety Light Curtain
Control System: PLC Control System
Air Consumption: Approx. 100L/min
Trimming Size: Max. 110mm X 110mm
The TJIN 003 Trim And Form Machine is a state-of-the-art semiconductor trim and form equipment designed for high efficiency and precision in integrated circuit manufacturing and electronic component production. It is a tendon cutting and molding machine that provides reliable and quality results, making it an essential tool for any semiconductor manufacturing process.
The TJIN 003 Trim And Form Machine is specifically designed for use in the semiconductor industry. It is used to cut and mold tendons in electronic components such as integrated circuits, making it an essential part of the semiconductor manufacturing process. With its high efficiency and precision, it helps improve the overall production process and ensures the quality of the final product.
The TJIN 003 Trim And Form Machine is used in various stages of the semiconductor manufacturing process. It is typically used after the assembly of electronic components, where it cuts and molds the tendons to the required size and shape. The machine is also used during quality control processes, ensuring that all electronic components meet the necessary standards.
The machine is operated by trained technicians and is typically used in a controlled and clean environment to prevent any damage or contamination of the electronic components. With its compact design and easy operation, the TJIN 003 Trim And Form Machine can be used in a variety of production scenarios, making it a versatile tool for any semiconductor manufacturing facility.
In conclusion, the TJIN 003 Trim And Form Machine is an essential tool for high efficiency and precision in semiconductor manufacturing. With its advanced features, safety measures, and reliable performance, it is a valuable asset for any integrated circuit manufacturing and electronic component production facility. Trust in TJIN for quality and reliable semiconductor cutting and molding machines.
Brand Name: TJIN
Model Number: 003
Place of Origin: China
Model: TFM-1100
Trimming Speed: Approx. 0.5 Seconds Per Piece
Forming Size: Max. 110mm X 110mm
Safety Features: Emergency Stop Button, Safety Light Curtain
Trimming Size: Max. 110mm X 110mm
Key Words: Trim and Form System, Semiconductor Trim and Form Equipment, Plastic Cutting and Molding Machine
Our Trim And Form Machine, model TFM-1100, is a highly efficient and reliable solution for your trimming and forming needs. With a trimming speed of approximately 0.5 seconds per piece, it is capable of handling large volumes of work in a short amount of time.
The forming size of our machine is a maximum of 110mm X 110mm, making it suitable for a wide range of products. Additionally, we offer customized services to ensure that our machine meets your specific needs and requirements.
Our Trim And Form Machine is designed and manufactured in China under the brand name TJIN, ensuring high quality and durability. It is equipped with safety features such as an emergency stop button and a safety light curtain to ensure the safety of your operators.
With our Trim And Form Machine, you can expect precise trimming and forming of your products, thanks to its advanced technology and precision engineering. It is suitable for a variety of industries, including the semiconductor industry, as it is a semiconductor trim and form equipment. It is also ideal for plastic cutting and molding, making it a versatile solution for your manufacturing needs.
To ensure safe and secure delivery, our Trim And Form Machine is carefully packaged and shipped using high-quality materials and reliable shipping methods.
Each machine is first wrapped in protective materials, such as bubble wrap and foam, to prevent any damage during transit. It is then placed in a sturdy cardboard box and sealed with packaging tape.
For international orders, we use reputable shipping companies to ensure timely and efficient delivery. Our team also takes extra care to properly label each package with the necessary customs documentation to avoid any delays or issues.
Upon arrival, our customers can expect their Trim And Form Machine to be in pristine condition, ready to be put to use in their production line.
Should there be any concerns or issues with the packaging or shipping of your machine, please do not hesitate to contact our customer support team for assistance.
