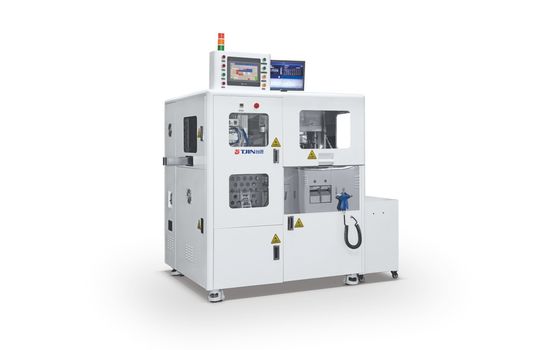

Full-Automatic Cutting, Forming And Separating System
Product Detail:
Punching power: servo motor upper power-3~5T;
Control system: PLC (Omron)
Operating system: touch screen + buttons, display UPH/SPM punching and cutting count;
Feeding structure: rotary double magazines feeding;
Receiving structure: cartridge receiving (bulk)
Safety protection system: the equipment has a leakage protection device, emergency stop button device and all the main protective doors are equipped with SENSOR protection device;
Option 1: CCD visual inspection device;
Option 2: MES system networking function;
FAQ:
| Semiconductor Cutting and Molding Machine | |
|---|---|
| Model | TFM-1100 |
| Forming Speed | Approx. 0.8 Seconds Per Piece |
| Safety Features | Emergency Stop Button, Safety Light Curtain |
| Forming Size | Max. 110mm X 110mm |
| Trimming Size | Max. 110mm X 110mm |
| Air Pressure | 0.5MPa |
| Trimming Speed | Approx. 0.5 Seconds Per Piece |
| Operation Mode | Manual/Auto |
| Power Supply | AC 220V, 50/60Hz |
| Dimensions | Approx. 1,200mm X 1,200mm X 1,500mm |
| Semiconductor Cutting and Molding Machine | |
| Plastic Cutting and Molding Machine |

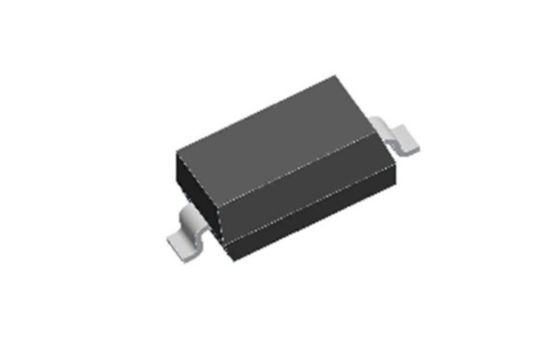

Semiconductor components play a crucial role in various electronic devices, and their precision and quality are essential for the smooth functioning of these devices. To meet the increasing demand for perfectly trimmed and formed semiconductor components, we are proud to introduce our latest product - the Trim And Form Machine.
The Trim And Form Machine is equipped with advanced safety features to ensure the protection of operators and prevent accidents. An Emergency Stop Button is located at an easily accessible location, allowing operators to stop the machine immediately in case of an emergency. Additionally, a Safety Light Curtain is installed to detect any obstructions or interference, automatically stopping the machine to prevent accidents.
The Trim And Form Machine is designed to provide a highly efficient and speedy solution for trimming and forming semiconductor components. With a trimming speed of approximately 0.5 seconds per piece and a forming speed of approximately 0.8 seconds per piece, this machine can significantly increase productivity and reduce production time.
Our Trim And Form Machine is equipped with a high-speed cutting and separating system, ensuring precision trimming of semiconductor components. This system allows for accurate and consistent cuts, resulting in perfectly trimmed components every time. This precision ensures the smooth functioning of electronic devices and reduces the risk of defects.
The Trim And Form Machine has a compact and lightweight design, making it easy to install and move around the production facility. With an approximate weight of 500kg and dimensions of 1,200mm x 1,200mm x 1,500mm, this machine can fit into small spaces without compromising on performance.
In today's fast-paced world, the demand for semiconductor components is constantly increasing, and the need for precision and efficiency in their production is crucial. The Trim And Form Machine is the perfect solution for this, offering safety, speed, precision, and compact design in one package. With this product, we aim to provide a reliable and efficient solution for semiconductor trimming and forming, contributing to the growth of the electronics industry.
Brand Name: TJIN
Model Number: 003
Place of Origin: China
Forming Size: Max. 110mm X 110mm
Safety Features: Emergency Stop Button, Safety Light Curtain
Control System: PLC Control System
Trimming Size: Max. 110mm X 110mm
Air Consumption: Approx. 100L/min
Key Features: Plastic Cutting and Molding Machine, Auto Frame Loader, High Speed Cutting and Separating System
The Trim And Form Machine will be packaged in a sturdy cardboard box to ensure its safe delivery. The machine will be securely wrapped in bubble wrap and placed in the box, along with all necessary accessories such as user manual and power cord.
The Trim And Form Machine will be shipped via a reputable courier service, such as FedEx or UPS. The shipping cost will be calculated based on the weight and destination of the package. Customers will have the option to track their package using a tracking number provided by the courier.
